UL-MOBI

Features UL-MOBI

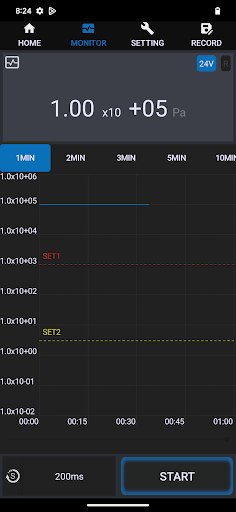

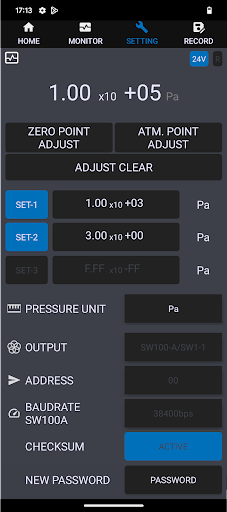

UL-MOBI is an application software which can measure degree of vacuum when smartphone connects to ULVAC vacuum gauge “SWU10-U,SH200/ST200,SW100” via USB cable.●Functions・Displays real-time pressure, trend graph・Data logging function*Log data is saved to internal storage of smartphone as CSV format.・Zero point adjust/atmospheric pressure adjust/reset・Setpoint setting：SH200/ST200/SW100.・Password setting：SH200/ST200/SW100.●Available smartphone models・OS: Android 6 or later・Connector: USB Type-C・USB cable length: 5m or less・OTG supported●Additional information・The following connection cables are recommended.SWU10-U：U2C-CMB-15NBK(USB Type-C – USB2.0 micro-B)SH200/ST200：U2C-CC15NBK2(USB Type-C – USB Type-C)・File size: In case of 1 sec interval 1hour, approx.100KB・Please refer to the URL below for available smartphone models list.　https://www.ulvac.co.jp/download/application/?category=887
